Simple Flowcharts 4

Read two unequal values, sum them, and then print the larger of the two values and the sum.

Flowchart      RAMM Machine Language Program     RAMM Assembly Language Program

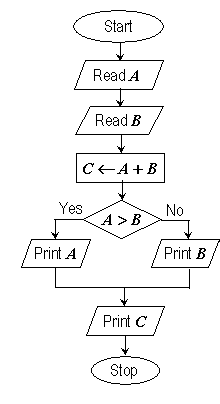

Flowchart:



RAMM Machine Language Program:

0000  00  A
0000  01  B
0000  02  C
5000  03  STRT  No operation
6500  04        Read A
6501  05        Read B
1200  06        Load (A-Reg) with (A)
1401  07        Add (B) to (A-Reg)
2002  08        Store (A-Reg) at C
1200  09        Load (A-Reg) with (A)
1501  10        Subtract (B) from (A-Reg)
3715  11        Jump if (A-Reg) is negative to PRIB
6600  12        Print A
6602  13  PRIC  Print C
7517  14        Unconditional Jump to EXIT
6601  15  PRIB  Print B
7513  16        Unconditional Jump to PRIC
0000  17  EXIT  Halt
9903  18        End and begin program execution at STRT


RAMM Assembly Language Program:

A     BSS 0001
B     BSS 0001
C     BSS 0001
STRT  NOP
      RDI A
      RDI B
      LDA A
      IAD B
      STA C
      LDA A
      ISB B
      AMJ PRIB
      PRI A
PRIC  PRI C
      UNJ EXIT
PRIB  PRI B
      UNJ PRIC
EXIT  HLT
      END STRT
